KPT-8000M

Klipsch杰士(美国)

THX 系列

THX系列

产品描述

世界最好的影院操作员选择klispch影院系统,因为他能够传递最强烈的电影效果同时不损失音乐的清晰度,在设计KW-120-THX低音的时候,klipsch应用了它影院的经验带来了同样有力量,低音浑厚的声音,适合于家庭使用。

产品描述



RP系列

RP系列

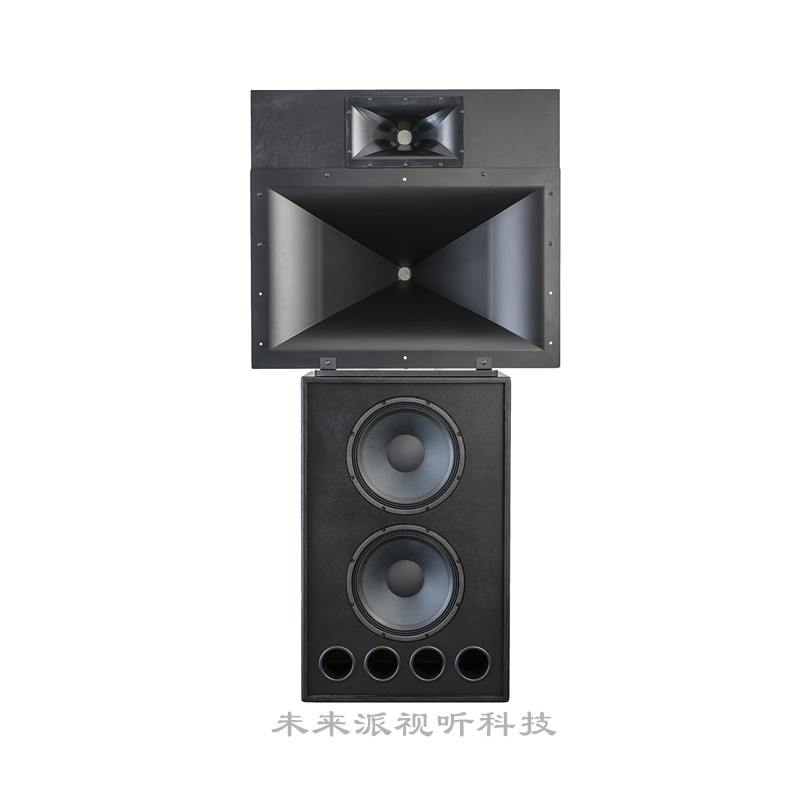

KPT-535-M

KPT-535-M

产品特色

KPT-535-M 利用 KPT-904/940-LF 双 15 英寸低频系统在厚度仅为 24 英寸的系统中实现纯净、富有震撼力的输出,十分适合大中型礼堂。

KPT-402 中低音 Tractrix® 号角与 Klipsch K-1133 2 英寸出口钛合金压缩驱动单元配合,以完美的清晰度精确再现最轻柔的语音。Grand-HF-T Tractrix 号角可轻松处理高频。

规格参数:

FREQUENCY RESPONSE(+/- 3 dB)

45 Hz - 19 kHz

FREQUENCY RANGE (-10 dB)

32 Hz - 20 kHz

SENSITIVITY2

106 dB

持续功率

500W(40V)

峰值功率

2000W

标准阻抗

MAXIMUM SPL4

129 dB

HORIZONTAL COVERAGE

90° +/- 30o 200 Hz - 16 kHz

VERTICAL COVERAGE

60° +/- 30o 300 Hz - 16 kHz

DIRECTIVITY INDEX (DI)

8 dB

DIRECTIVITY FACTOR (Q)

6.3

HEIGHT

81” (206cm)

WIDTH

40.25” (102.2cm)

DEPTH

23.25” (59.1cm)

WEIGHT

215 lbs. (97.6 kg)

KPT-418-SW


KPT-418-SW



产品特色

KPT-418-SW 是一款高输出低音反射低音炮系统,具有真正的底端性能,以及较高的功率容量和高效率。

DESIGNED AND MADE IN THE USA

USING DOMESTIC AND IMPORTED COMPONENTS

In 1946, Paul W Klipsch, genius & maverick, hand-built his frst loudspeaker in a tin shed with the intention of bringing live music into his living room. Remember great sound? We do, too. Today, Klipsch’s cinema speaker enclosures are made in the USA, by proud craftsmen in Hope, Arkansas. Just like PWK intended.

产品概述:

The low-profle Klipsch KPT-418-SW high-output cinema subwoofer system uses a single 18-inch driver mountd in a bass reflex enclosure to accurately deliver the earth-shaking effects of today’s most demanding movie soundtracks.

With a depth of only 11 inches, the KPT-418 is even more compact than other cinema subwoofers, with greater output and great placement flexibility. It can be used as the main subwoofer system in a small auditorium, or as the subwoofer for surrounds in small- to medium-sized auditoriums.

Built from the inside out for performance and durability, the KPT-418 packs a lot of substance into a cinema sound system. Its true bottom-end performance along with high-power handling capability and high effciency allows audiences to hear as well as feel the impact of edge-of-your-seat entertainment.



规格参数:

FREQUENCY RESPONSE(+/- 3 dB)

38Hz–150Hz +/– 3dB (–10dB @ 26Hz)

POWER HANDLING2

600 watts (47V)  2400 watts peak

MAXIMUM SPL3

125 dB Continuous  131 dB Peak

SENSITIVITY4

101dB

NOMINAL IMPEDANCE

8 ohms (3.6 min. @ 24Hz)

COMPONENTS

One K-49-EP2 18” woofers

INPUT CONNECTION

Two point barrier strip

ENCLOSURE MATERIAL

3/4" MDF cabinet 1” MDF motorboard

HEIGHT

43.5” (111.5cm)

WIDTH

40.75” (103.5cm)

DEPTH

11.0” (27.9cm)

WEIGHT

119lbs (54kg)

ITEM NUMBER

097155011313

最小推荐功放功率

1200W@4Ω

KPT-8000M

KPT-8000M



产品特色

KPT-8000M 是一款十分美观的高价值环绕音箱,十分适合成本效益为主要目标的小型影院,提供灵活的侧墙或吊顶安装方式,使其成为如今先进的多声道数字音频格式的理想之选。

产品概述:

The emergence of today’s multichannel digital surround sound formats has created a need for extended versatility in cinema surround speakers. The Klipsch KPT-8000M Cinema Surround speaker was created to meet that need with a perfect solution for smaller size cinemas where cost effectiveness is a major objective. Designed for flexible side-wall or ceiling placements, the Klipsch-exclusive Tractrix® Horn technology provides critical low-distortion clarity with high-effciency for maximum output per watt. The added ellipses or “mumps” to the horn enhance full-horn frequency coverage across its 90° x 90° wide dispersion area.

The solid, molded cabinet design provides an attractive, contemporary look that blends perfectly with today’s high-style venues with pre-drilled holes to ft industrystandard mounting brackets for fast, easy and secure installation. Mounted flush on a vertical surface (wall) produces an 8° downward fring angle while the included insert adds an additional 7° of angle for a total of 15°. Klipsch SB-6 and SB-7 mounting brackets are recommended for side-wall mounting while an approved third-party bracket can easily be utilized for ceiling mounting.

Whether used in a standard surround format, or called upon to create the jawdropping effects of today’s advanced digital surround formats, the Klipsch KPT-8000M provides the ultimate in surround sound reproduction, putting movie audiences right in the middle of the action..

规格参数:

FREQUENCY RESPONSE(+/- 3 dB)

75 Hz – 20 kHz (–10 dB @ 48 Hz)

POWER HANDLING2

AES: 100 watts (21V)
IEC: 125 watts (23.5V)

MAXIMUM SPL3

116 dB Continuous
122 dB Peak

SENSITIVITY4

97.5 dB @ 2.83V / 1M
95 dB @ 1W / 1M

COVERAGE

Horizontal: 90° +/– 20° 2 kHz – 20 kHz
Vertical: 90° +20°/–40° 2 kHz – 20 kHz

DIRECTIVITY INDEX (DI)

7.5 dB +/- 1 dB 2 kHz – 20 kHz

DIRECTIVITY FACTOR (Q)

5.6 2 kHz – 20 kHz

NOMINAL IMPEDANCE

8 ohms, (minimum 4.4 ohms @ 217 Hz)

CROSSOVER FREQUENCY

1.9 kHz 12 dB/Octave LF 18 dB/Octave HF

COMPONENTS

One K-8-ST 8" woofer
One K-103-TI-KP 1” titanium compression driver on a K-802 horn

INPUT CONNECTION

Four point barrier strip

BRACKET SCREW PATTERN

4 screw: 2.75” (6.9cm) x 5” (12.7cm)

INCLUDED SCREWS

(4) 1.125” (2.86cm) 1/4
Bottom: 13” (33cm)

ENCLOSURE MATERIAL

ABS + 10% glass

GRILLE

Power-coated steel

HEIGHT

18.7” (47.5cm)

WIDTH

Top: 14.7” (37.3cm)
Bottom: 13” (33cm)

DEPTH

Top: 7.2” (18.3cm)
Bottom: 4.7” (11.9cm)

WEIGHT

15.77 lbs (7.15kg)

TILT

Built-in 8° downward angle with 15° angle option

SAFETY CABLE INSERT

3/8” 1/4-20 threaded

ACCESSORIES

SB-6 mounting bracket
SB-7 mounting bracket
SB-9 mounting bracket
